Desorption rate: >96%
Electrolysis rate: >99%
Capacity: 100 kg, 300kg, 500kg , 1000kg per batch
Orginal: China

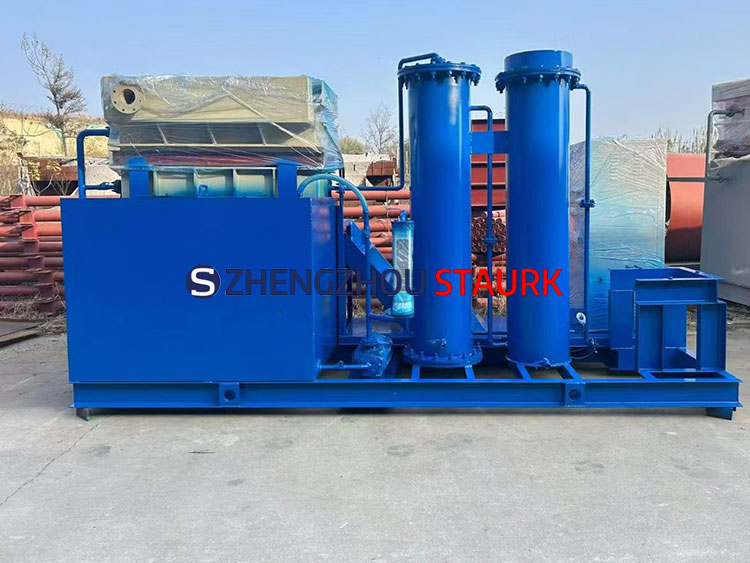

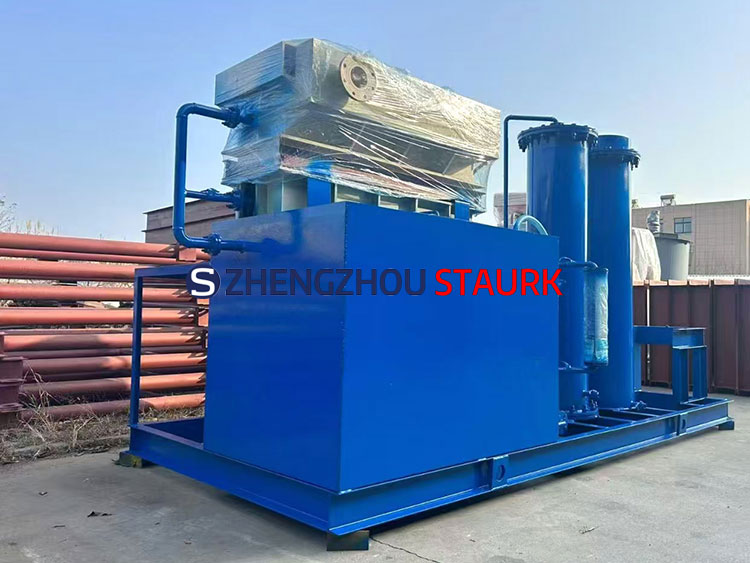

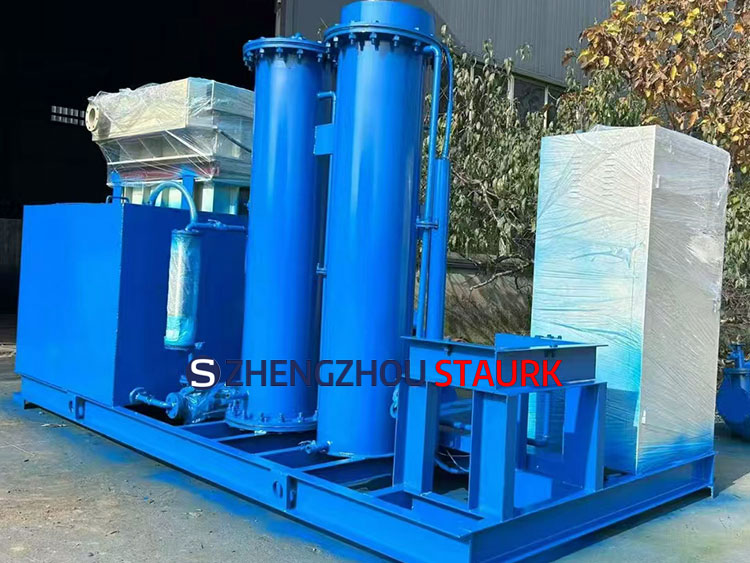

Gold adsorption desorption electrolysis Equipment is specifically designed for Gold CIL CIP plant and heap leaching-carbon adsorption processes, enabling direct production of refined gold through desorption electrolysis of gold-loaded carbon. It features a compact structure, mobility, comprehensive functionality, complete supporting systems, simple operation, and high efficiency.
Equipment includes:
1. Desorption column
2. Electric heater
3. Heat exchanger
4. Electrolytic cell
5. Desorption electrolysis control cabinet
6. Acid-resistant pump
Equipment performance:
Production capacity: 100, 300, 500, and 1000 kg of dry carbon per batch
Working principle:
Gold-loaded activated carbon is placed in a desorption column filled with cyanide solution and caustic soda. After heating the desorption solution, gold and silver are extracted from the carbon to form a precious metal solution. This solution is then subjected to electrolysis. Under the influence of direct current, gold precipitates at the cathode, forming gold powder / soil .
